P1 Single-Axis Piezo
Sensor type Piezo, single axis
Piezo accelerometer for advanced vibration analysis, with a ±25 g range and 0.3 to 10 kHz frequency response.
View product
BluVib wireless vibration sensors, assessment tools and development kits for predictive maintenance and machine condition monitoring. Choose individual sensors, a portable assessment tool, or a kit to start building your own monitoring solution.
Piezo and MEMS accelerometer sensors with battery life of up to five years, IP66 rated enclosures and ATEX certified variants for hazardous locations.
Sensor type Piezo, single axis
Piezo accelerometer for advanced vibration analysis, with a ±25 g range and 0.3 to 10 kHz frequency response.
View product
Sensor type Piezo, three axis
Three axis piezo accelerometer for comprehensive analysis of rotating machinery, with a ±25 g range.
View product
Sensor type MEMS, three axis
MEMS accelerometer for advanced monitoring, with DC to 6 kHz trending and DC to 10 kHz spectral analysis.
View productA portable assessment tool with ISO 20816 alarms, and development kits that let you configure sensors and read data before writing a line of custom code. The Lab Kit and Field Trial Kit gateways come pre-loaded with the Sensor-Works ReST API. Choose the kit by the gateway that suits your project.
Inputs Two sensors
Portable assessment tool for walk-around inspections, with templates for motors, pumps and gearboxes and ISO 20816 alarms.
View product
Gateway Raspberry Pi 5
Starter kit for lab development. Gateway pre-loaded with the Sensor-Works ReST API, supplied with one MEMS triaxial sensor.
View product

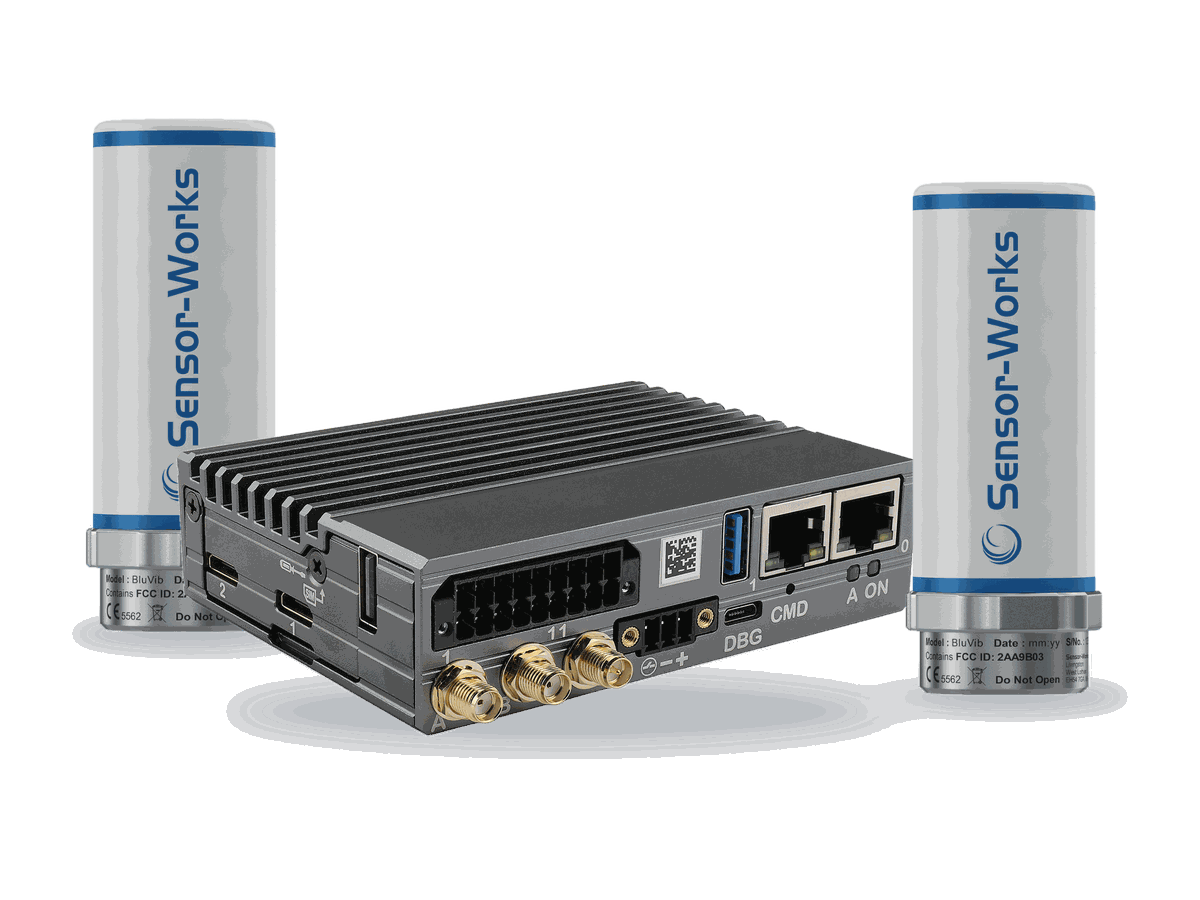

Gateway CompuLab IOTG
Kit for remote field trials. Cellular ready industrial gateway pre-loaded with the Sensor-Works ReST API, supplied with two MEMS triaxial sensors.
View productGateway Cassia industrial gateway
The Field Trial Kit supplied with a Cassia industrial Bluetooth gateway. Full details and pricing coming soon.
Register interest| Feature | P1 Single-Axis | P3 Tri-Axial | M3 Tri-Axial |
|---|---|---|---|
| Sensor type | Piezo | Piezo | MEMS |
| Measurement range | ±25 g | ±25 g | ±16 g |
| Frequency range | 0.3 to 10 kHz | 5 Hz to 10 kHz | DC to 6 kHz trending DC to 10 kHz spectral |
| Best suited to | Advanced analysis | Comprehensive analysis | Advanced monitoring |
Sensor-Works delivers wireless vibration and temperature sensors designed for predictive maintenance and machine condition monitoring. The BluVib sensor range monitors rotating machinery including motors, pumps, gearboxes and fans, with Bluetooth 5 connectivity, a battery life of up to five years, and IP66 rated enclosures built for harsh industrial environments.
The sensors support several operating modes, including wake-up interval for maximum battery life, continuous monitoring for critical applications, and event triggered measurements. Variants are available with ATEX certification for safe operation in hazardous areas, making them suitable for oil and gas, chemical processing and other explosive atmosphere applications.
The MC1 Machine Assessment Tool gives maintenance teams a portable solution, with pre-configured templates for motors, pumps and gearboxes and ISO 20816 compliant alarms. For integration projects, the BluVib Lab Kit pairs a Raspberry Pi 5 gateway with a MEMS triaxial sensor for development work, while the BluVib Field Trial Kit uses a cellular ready industrial gateway and two sensors for remote trials. Both gateways come pre-loaded with the Sensor-Works ReST API. For permanent installations, the Cassia gateway range offers a heavy-duty industrial solution that can operate in an outdoor environment, with the option of Bluetooth powered antennas and an ATEX version.
Whether you need individual sensors for spot monitoring, a portable tool for walk-around inspections, or a kit for building your own condition monitoring solution, BluVib sensors provide reliable, accurate data to improve machine reliability and reduce maintenance costs.
Speak with our team for a solution tailored to your monitoring needs.
Request a quote
